NEAR IG 6 Outdoor Speaker System Test Bench

Test Bench

NEAR IG6 Speaker System


IG6 (purple) +2.47/–3.10 dB, 200 Hz to 10 kHz; –3 dB @ 116 Hz, –6 dB @ 92 Hz; impedance minimum 8.57 ohms @ 20 Hz, phase angle +44.53º @ 594 Hz; sensitivity 81 dB, 500 Hz to 2 kHz.

IGS12 (blue) Close-miked response, normalized to level @ 80 Hz: lower –3 dB point @ 38 Hz; –6 dB @ 33 Hz, upper –3 dB point @ 102 Hz with the 6XL’s 85Hz Filter switch set to LP (measured without corresponding EQ, lower –3 dB @ 59 Hz, –6 dB @ 51 Hz); upper –3 dB @ 123 Hz; impedance minimum 8.43 ohms @ 75 Hz, phase angle +30.52º @ 98 Hz.—MJP

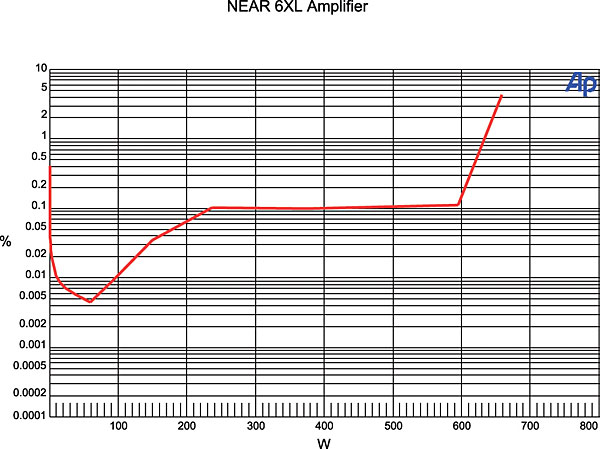

NEAR 6XL Amplifier


This graph shows the 6XL’s left amplifier channel, with two channels driving 8-ohm loads. Note that, despite the relatively low output where the amp entered into 0.1% distortion, it hugged that line closely right up to nearly full output. Full details available at soundandvision.com.—MJP
