POWER OUTPUT: 110 watts per channel (20 Hz-20 kHz, 0.08% THD, 2 ch. driven at 8Ω; (surround: 9 ch.x110w at 8Ω, 20 Hz-20 kHz, 0.08% THD, 1 ch. driven)
DIMENSIONS: (WxHxD, Inches): 17.4 x 6.5 x 15.9 in.
WEIGHT: 29.8 lb.
AUDIO INPUTS: 6x HDMI (plus eARC), 2 coax, 2 optical digital, 1 USB (front); 5 analog stereo line unbal.,1 MM phono.
AUDIO OUTPUTS: 11x speaker (9 active simultaneously: up to 4 assignable to zones); 11.4-channel unbal. preamp outputs (inc. Height-2/Zone-3, 4 subwoofer outputs), 1 stereo zone line out
VIDEO INPUTS: 6x HDMI
VIDEO OUTPUTS: 3x HDMI (1 eARC, 1 zone)
WIRELESS: Bluetooth 4.2 A2DP/AVRCP; WiFI/Airplay2
ADDITIONAL: FM 75Ω "F" antenna; AM-antenna push-terminals; Ethernet (network, control, streaming); RS-232 (control), 1x 12v-trigger; remote in/out, USB (power only).

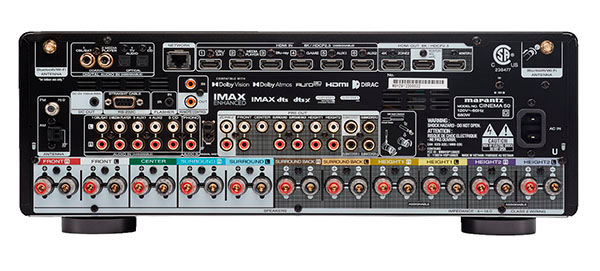

REAR PANEL
