Five channels driven continuously into 8-ohm loads:
0.1% distortion at 24.6 watts
1% distortion at 27.1 watts

Seven channels driven continuously into 8-ohm loads:
0.1% distortion at 5.2 watts
1% distortion at 11.4 watts

Analog frequency response in Stereo mode:
–0.03 dB at 10 Hz
–0.01 dB at 20 Hz
–0.04 dB at 20 kHz
–3.12 dB at 50 kHz

Analog frequency response with stereo signal processing:
–0.22 dB at 10 Hz
–0.09 dB at 20 Hz
+0.23 dB at 20 kHz
–64.27 dB at 50 kHz

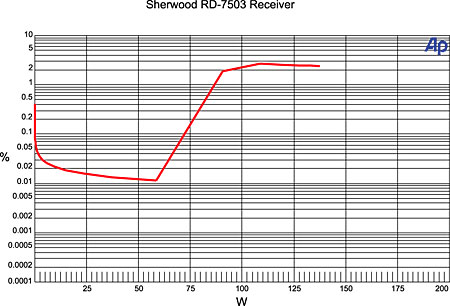

This graph shows that the RD-7503’s left channel, from CD input to speaker output with two channels driving 8-ohm loads, reaches 0.1 percent distortion at 72.1 watts and 1 percent distortion at 86.7 watts. Into 4 ohms, the amplifier reaches 0.1 percent distortion at 72.0 watts and 1 percent distortion at 73.6 watts.

Response from the multichannel input to the speaker output measures –0.04 decibels at 10 hertz, –0.02 dB at 20 Hz, –0.09 dB at 20 kilohertz, and –3.16 dB at 50 kHz. THD+N from the CD input to the speaker output was less than 0.043 percent at 1 kHz when driving 2.83 volts into an 8-ohm load. Crosstalk at 1 kHz driving 2.83 volts into an 8-ohm load was –70.85 dB left to right and –70.01 dB right to left. The signal-to-noise ratio with 2.83 volts driving an 8-ohm load from 10 Hz to 24 kHz with “A” weighting was –96.56 dBrA.

From the Dolby Digital input to the loudspeaker output, the left channel measures –0.06 dB at 20 Hz and +0.16 dB at 20 kHz. The center channel measures –0.07 dB at 20 Hz and +0.15 dB at 20 kHz, and the left surround channel measures –0.06 dB at 20 Hz and +0.17 dB at 20 kHz. From the Dolby Digital input to the line-level output, the LFE channel is –0.01 dB at 20 Hz when referenced to the level at 40 Hz and reaches the upper 3-dB down point at 119 Hz and the upper 6-dB down point at 122 Hz.—MJP
