Elac Debut F5 Speaker System Review Test Bench

Test Bench

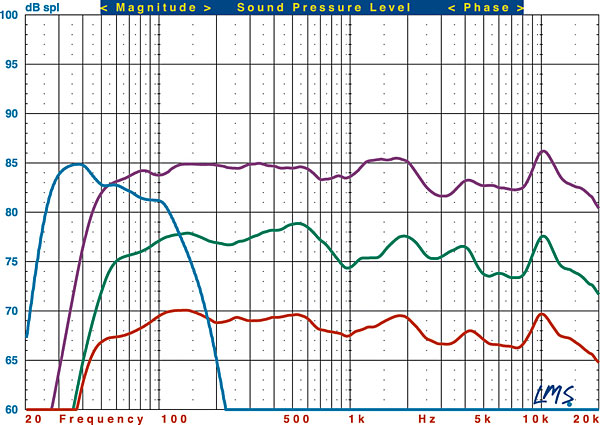

F5 (purple) +1.54/–2.90 dB, 200 Hz to 10 kHz; –3 dB @ 48 Hz, –6 dB @ 42 Hz; impedance minimum 5.70 ohms @ 99 Hz, phase angle –43.51º @ 41 Hz; sensitivity 84.5 dB, 500 Hz to 2 kHz.

C5 (green) +1.83/–3.67 dB, 200 Hz to 10 kHz; –3 dB @ 55 Hz, –6 dB @ 48 Hz; impedance minimum 5.04 ohms @ 186 Hz, phase angle –62.72º @ 98 Hz; sensitivity 88 dB, 500 Hz to 2 kHz.

B5 (red) +1.19/–2.24 dB, 200 Hz to 10 kHz; –3 dB @ 52 Hz, –6 dB @ 44 Hz; impedance minimum 6.04 ohms @ 186 Hz, phase angle –52.11º @ 98 Hz; sensitivity 84.5 dB, 500 Hz to 2 kHz.

S10EQ (blue) Close-miked response, normalized to level @ 80 Hz: lower –3 dB @ 25 Hz, –6 dB @ 23 Hz, upper –3 dB @ 123 Hz when reset to factory default.—MJP
