Tower Speaker Reviews

Sensitivity: 92 dB from 500 Hz to 2 kHz

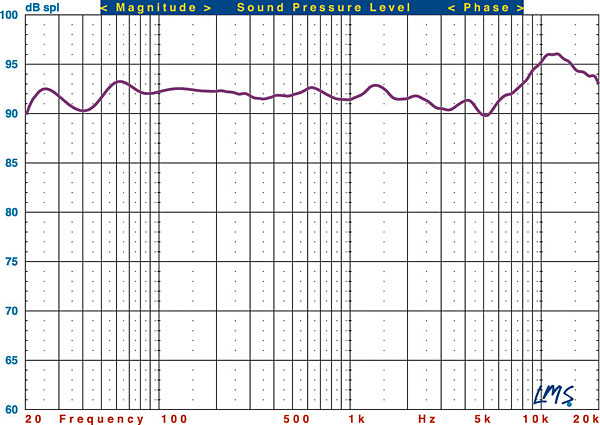

This graph shows the quasi-anechoic (employing close-miking of all woofers) frequency response of the Triton Reference (purple trace). The loudspeaker was measured with grille at a distance of 1 meter with a 2.83-volt input.

The Triton Reference’s listening-window response (a five-point average of axial and +/–15-degree horizontal and vertical responses) measures +3.12/–2.23 decibels from 200 hertz to 10 kilohertz. An average of axial and +/–15-degree horizontal responses measures +3.30/–1.87 dB from 200 Hz to 10 kHz. The –3dB point is at 20 Hz, and the –6dB point is at 18 Hz. Impedance reaches a minimum of 4.07 ohms at 302 Hz and a phase angle of –26.23 degrees at 158 Hz.—MJP
