SVS SB-2000 and PB-2000 Subwoofers Test Bench

Test Bench

SVS SB-2000 Subwoofer

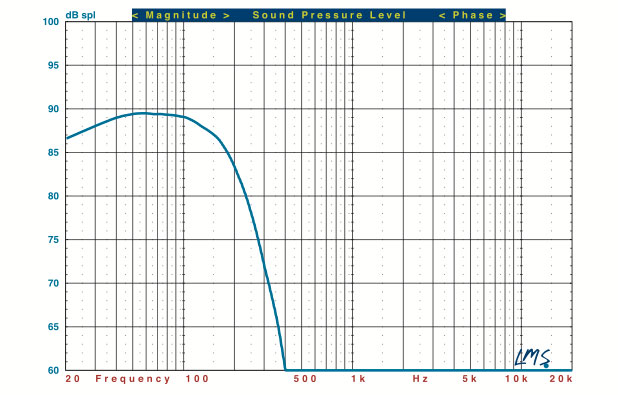

This graph shows the quasi-anechoic (employing close-miking of the woofer) frequency response of the SB-2000 subwoofer (blue trace).


The SB-2000’s close-miked response, normalized to the level at 80 Hz, indicates that the lower –3dB point is at 19 Hz and the –6dB point is at 15 Hz. The upper –3dB point is at 158 Hz using the LFE input.—MJP

SVS PB-2000 Subwoofer

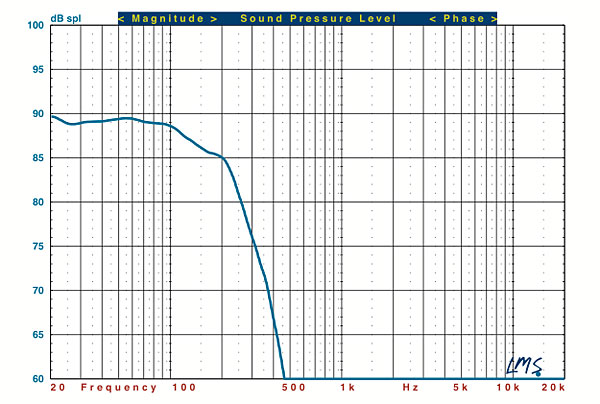

This graph shows the quasi-anechoic (employing close-miking of the woofer) frequency response of the PB-2000 subwoofer (blue trace).


The PB-2000’s close-miked response, normalized to the level at 80 Hz, indicates that the lower –3dB point is at 18 Hz and the –6dB point is at 16 Hz. The upper –3dB point is at 157 Hz using the LFE input.—MJP
