Pioneer Elite SC-68 A/V Receiver HT Labs Measures

HT Labs Measures

Two channels driven continuously into 8-ohm loads:
0.1% distortion at 144.5 watts
1% distortion at 191.6 watts

Five channels driven continuously into 8-ohm loads:
0.1% distortion at 92.3 watts
1% distortion at 138.8 watts

Seven channels driven continuously into 8-ohm loads:
0.1% distortion at 90.0 watts
1% distortion at 113.8 watts

Analog frequency response in Pure Direct mode:
–0.24 dB at 10 Hz
–0.07 dB at 20 Hz
+0.93 dB at 20 kHz
–1.87 dB at 50 kHz

Analog frequency response with signal processing:
–0.94 dB at 10 Hz
–0.28 dB at 20 Hz
–1.44 dB at 20 kHz
–68.68 dB at 50 kHz

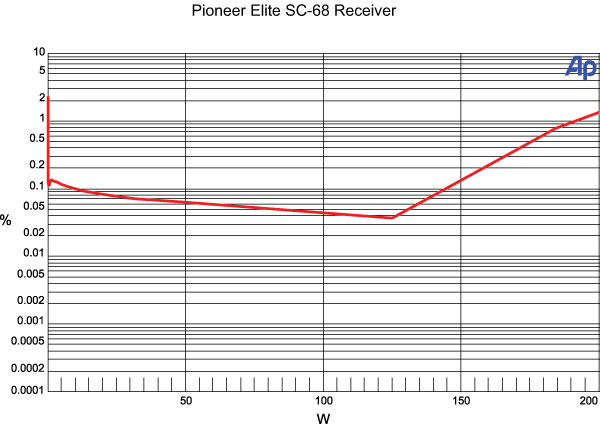

This graph shows that the SC-68’s left channel, from CD input to speaker output with two channels driving 8-ohm loads, reaches 0.1 percent distor- tion at 144.5 watts and 1 percent distortion at 191.6 watts. Into 4 ohms, the amplifier reaches 0.1 percent distortion at 191.1 watts and 1 percent distortion at 272.0 watts.

Response from the multichannel input to the speaker output measures –0.24 decibels at 10 hertz, –0.07 dB at 20 Hz, +0.89 dB at 20 kilohertz, and –1.87 dB at 50 kHz. THD+N from the CD input to the speaker output was less than 0.063 percent at 1 kHz when driving 2.83 volts into an 8-ohm load. Crosstalk at 1 kHz driving 2.83 volts into an 8-ohm load was –80.58 dB left to right and –80.87 dB right to left. The signal-to-noise ratio with an 8-ohm load from 10 Hz to 24 kHz with “A” weighting was –103.65 dBrA.

From the Dolby Digital input to the loudspeaker output, the left channel measures –0.06 dB at 20 Hz and –1.44 dB at 20 kHz. The center channel measures –0.06 dB at 20 Hz and –1.41 dB at 20 kHz, and the left surround channel measures –0.02 dB at 20 Hz and –1.40 dB at 20 kHz. From the Dolby Digital input to the line-level output, the LFE channel is –0.02 dB at 20 Hz when referenced to the level at 40 Hz and reaches the upper 3-dB down point at 110 Hz and the upper 6-dB down point at 117 Hz.—MJP

Video Test Bench
The Pioneer SC-68 passed all of our standard video tests (3:2 HD, 2:2 HD, MA HD—1080i in to 1080p out; 3:2 SD, 2:23 SD, MA SD—480i in to 1080p out; and Video Clipping, Luma Resolution, Chroma Resolution, and 3D passthrough—1080p in to 1080p out).—TJN
