Onkyo TX-NR828 A/V Receiver Test Bench

Test Bench

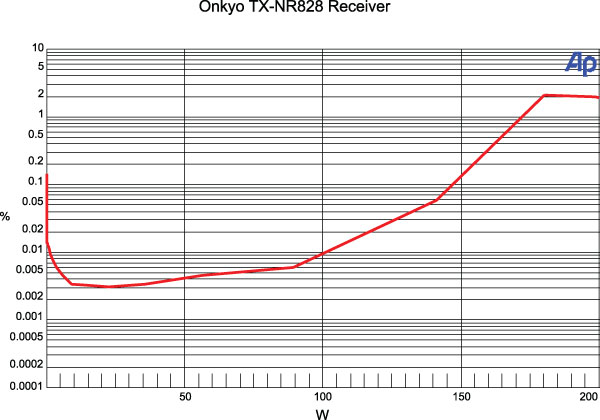

Audio: The graph shows the Onkyo TX-NR828’s left channel, from CD input to speaker output with two channels continuously driving 8-ohm loads. Measurements for THD+noise, crosstalk, signal-to-noise ratio, and analog/digital signal frequency response were all within expected performance parameters. Full details available at soundandvisionmag.com/TestBench.—MJP


0.1% THD 1.0% THD
2 Channels Continuously Driven, 8 ohm loads 147 watts 172.1 watts
2 Channels Continuously Driven, 4 ohm loads 204.4 watts 246.9 watts
5 Channels Continuously Driven, 8 ohm loads 109.9 watts 125.5 watts
7 Channels Continuously Driven, 8 ohm loads 78.5 watts 96.8 watts

Video: The Onkyo passed all of our standard video tests without a hiccup, including the 2:2 cadence tests that many products fail. Its upconversions from 480i and 1080i to 1080p were excellent, and its direct passthrough of 1080p signals was pristine.—TJN

COMPANY INFO
Onkyo USA
(201) 785-2600
