Rotel RSP-1570 Surround Processor and RMB-1575 Amplifier HT Labs Measures Rotel RMB-1575 Amplifier

HT Labs Measures Rotel RMB-1575 Amplifier

Five channels driven continuously into 8-ohm loads:
0.1% distortion at 268.5 watts
1% distortion at 317.9 watts

Frequency response:
–0.29 dB at 10 Hz
–0.08 dB at 20 Hz
–0.95 dB at 20 kHz
–4.45 dB at 50 kHz

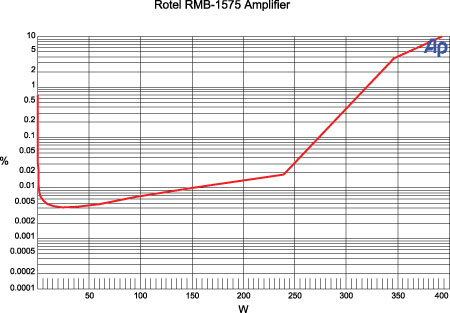

This graph shows that the RMB-1575’s left amplifier channel, with two channels driving 8-ohm loads, reaches 0.1 percent distortion at 273.4 watts and 1 percent distortion at 319.8 watts. Into 4 ohms, the amplifier reaches 0.1 percent distortion at 484.6 watts and 1 percent distortion at 510.0 watts. An input level of 129.3 millivolts was required to produce an output of 2.83 volts into an 8-ohm load, indicating an overall gain of +26.87 decibels.

THD+N from the amplifier was less than 0.008 percent at 1 kilohertz when driving 2.83 volts into an 8-ohm load. Crosstalk at 1 kHz driving 2.83 volts into an 8-ohm load was –104.74 dB left to right and –103.37 dB right to left. The signal-to-noise ratio with an 8-ohm load from 10 Hz to 24 kHz with “A” weighting was –102.55 dBrA.—MJP
