Realer Than Real

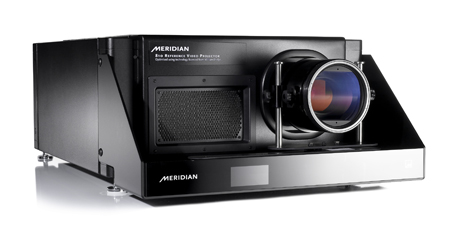

If you thought 1080p is as good as it gets, think again. Long known for its reference-quality audio products, Meridian now offers a video projector with five times the resolution of 1080p. Dubbed the 810 Reference Video Projector, this 140-pound behemoth uses three D-ILA panels, each with a resolution of 4096x2400 for a total of nearly 10 megapixels.

Based on a similar JVC projector designed for professional flight simulators, the 810 is intended for the ultra-high-end home-theater market. How ultra-high-end? A mere $185,000 gets you the projector, an outboard video processor, an ISCO3 anamorphic lens with motorized sled, and two complete calibrations—one for a white screen such as the Stewart Studiotek 130 and another for a gray screen such as the Stewart GrayHawk.

The calibration process, which was designed by video guru William Phelps, takes four days to complete for each type of screen material. In addition to grayscale, color accuracy, and other typical parameters, the process also addresses white-field and color uniformity, with less than 0.3% deviation in both across the entire screen. The calibration puts 16 foot-lamberts (the SMPTE-standard peak light level for commercial cinemas) on a 2.35:1 screen up to 24 feet wide.

Unlike its JVC counterpart, the 810 does not mask the imaging chips, which have a native aspect ratio of 17:10. To fill a 16:9 and 2.35:1 screen, the system must do some overscanning, which uses more pixels than masking would allow.

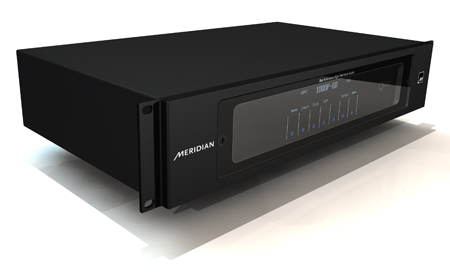

The outboard processor is based on a chipset from Marvell and connects to the projector with four DVI cables that drive different quadrants of the D-ILA panels. It can accept any signal from 480i to 1080p and upscale it to 10 megapixels. Interestingly, the processor has only two inputs—one HDMI and one DVI—so most systems will need an upstream switcher. However, it also has 12 memories called "phantom inputs" that can be tweaked for different sources.

If you haven't heard of Marvell, it makes chipsets for various applications—for example, the WiFi chipset in the PS3 and iPhone. The company is now entering the A/V market with a suite of technologies under the Qdeo ("Quiet Video") marketing moniker.

All of this sounds great, but how does it look? I've seen several demos of the 810, and all I can say is, Wow! Well, okay, I can say more than that. The material I've seen has not included any native 4K content, but there has been lots of 1080p upconverted to 10MP. The server had off-air HDTV broadcasts from NBC and PBS, clips ripped from Blu-ray and HD DVD titles, and QuickTime HD material such as one might download.

Even though the content was upconverted 1080p, it looked far better than any 1080p I've ever seen. The white-field and color uniformity really paid off in the depth of the image, which looked positively three-dimensional. Blacks were stunning, colors were gorgeous, and detail was breathtaking.

Of course, there is no native 4K commercial content available—yet. But if Fox has its way, there could be in the future. Still, what this system does with 1080p is almost magical, so those with $185,000 burning a hole in their pocket can easily surpass anything their neighbors might have.

Share | |
COMMENTS
angelo corbin's picture

I think this is great, it will just be a matter of time, when DLP projectors for home systems start coming out. With higher Gigabyte multi layer blu ray,s in the near future, many home theater lovers will be very happy. But when i saw this projector demo, i was blown away, and considering purchasing it for my home theater that will be built next year.

Scott Wilkinson's picture

Wow, if you're considering buying this projector, the recession must not be pounding you as it is most folks! Congrats on weathering the economic storm...

Bill's picture

The problem with this DLP projector, as with the 4K projectors destined for AMC cinemas, is that they still crush blacks. It's a fundamental limit of DLP technology. Unfortunately the mad rush to digital is once again meaning that a superior analog products, like CRT-based projectors and of course, film projection, will once again be limited to niche areas. For once, I wish a digital product would actually be better in ALL ways than the analog product it's destined to replace before the industry forces it down our collective throats.

Brian's picture

Bill is totally confused, but while he corrected his mistaken attribution of DLP to the Meridan 4K projector, he neglected to correct his reference to AMC projectors as based on DLP. The AMC projectors are Sony's, based on their SXRD version of LCOS. And, LCOS does not have any inherent tendency to crush blacks, so Angelo should feel safe in getting the Meridian (or the Sony 4K) for his home theater. Also, the movie studios are releasing 4K masters to the digital cinemas, so you can probably get these for your home cinema if you incorporate as a commercial cinema and pay their rates :-). I have not seen any 4K DLPs announced yet.
