Adam Audio GTC77 Speaker System


Performance
Build Quality
Value
Price: $6,850 At A Glance: 0 for looks • 11 on a 10 scale for sound • Smooooth air motion transformer tweeter

Although Berlin, Germany–based Adam Audio is a recent player in the American A/V marketplace, the company has produced passive and powered loudspeakers for both pro and home use for 11 years. The acronym ADAM stands for Advance Dynamic Audio Monitors. ADAM Audio USA entered the pro market here in 2002 and only recently began building a home audio distribution and sales network.

The company’s X-ART tweeter is hand-made in house, and the GTC speakers are designed, assembled, and tested in a modern manufacturing facility, the large size of which might surprise you—so don’t make anything of it if you don’t know Adam from Adam.

While Adam manufactures living-room-friendly speaker lines meant to be looked at as well as listened to, the editor assigned me a review system intended for placement behind scrims in a dedicated home theater environment. If you love that raw studio monitor aesthetic and can live alone to tell about it, you can also place the speakers out in the open on stands.

Although the plain, blackbox GTC series won’t win any Architectural Digest awards for elegance, with the grilles in place, even the large GTC77 L/C/R speaker is relatively unobtrusive. If you’re the type who prefers to maximize the sonic bang for your buck and you don’t care about fine veneers and smooth-to-the touch anodized-aluminum trim, have I got a system for you!

Oskar Heil’s Invention Re-Invented: The X-ART Tweeter
From the desktop ARTist 3 computer speaker to the largest speaker in this series, the GTC88, all Adam Audio speakers share a tweeter based on Oskar Heil’s unique Air Motion Transformer. Oldsters will recall this design from the 1970s ESS speaker brand—and not fondly (assuming you can remember that decade at all—and if you can and clearly, you weren’t having enough fun).

That early Heil tweeter, whatever its merits, could loosen the fillings from your molars. It was bright and hard sounding. Have no fear now, though, because Adam’s re-imagining of the innovative concept is incredibly smooth, sweet, and extended, yet precise and detailed. You have to hear the X-ART (Extended Accelerating Ribbon Technology) in action as it reproduces your favorite music or soundtracks. Once you do, you probably won’t want to stop listening—even if they are affixed to large, uninspired black boxes. This unique tweeter’s sonic performance is positively mesmerizing. Turn up the volume, and it becomes more so—and not hard and brittle.

Here’s how they say it works: The folds in the low-mass, pleated X-ART membrane compress or expand depending on the applied signal so that air is drawn in or expelled outward, sort of like an accordion’s bellows. Unlike a conventional driver that couples to air inefficiently since the air offers little resistance to the stiff cone or dome, the X-ART driver’s squeezing action moves the air faster than the membrane itself moves, upping the loading efficiency by a factor of four. In addition to efficient coupling, the softer membrane doesn’t exhibit the high-frequency breakup that normal, stiff cone or dome designs do. And since the conducting material is exposed to air, it cools far faster than a wound coil in a gap, thus improving power-handling capacity. In other words, the tweeter is detailed, smooth, and airy, and its –3-decibel point is claimed to be upwards of 50 kilohertz. I’ve now spent a month or so being serenaded by five of them, so I’ve become a big fan.

The Black-Box Solution

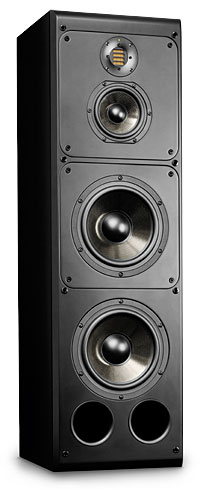

Adam Audio supplied a system that consists of three GTC77s and two GTC55s, along with a GTC S12 subwoofer. The versatile GTC77 is large, but not large enough to be floorstanding, so short stands are required. Each tall MDF box includes two modular units, one that contains a single 7-inch carbon/Rohacell/glassfiber-coned woofer, the other a 4-inch midrange driver of the same materials, and an X-ART tweeter. Another 7-inch woofer is attached directly to the thick, front-ported MDF front baffle.

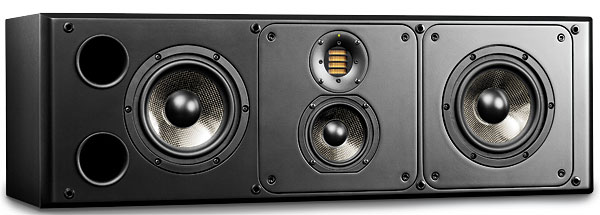

Thanks to the modular design, the sealed midrange/tweeter unit easily rotates 90 degrees to turn the GTC77 into a horizontal center-channel speaker. Or you can swap it with the modular woofer if you need higher tweeter placement to accommodate a better match with ear level. The smaller GTC55 is a more conventional WTW design with a pair of 5.5-inch cones that flank the X-ART tweeter. Although this isn’t a modular design, you can unscrew the GTC55 tweeter and reorient it for center-channel placement. Adam’s black-box GTC S12 subwoofer features a front-ported 12-inch papercone driver powered by a 200-watt amplifier, all fitted into a conveniently shallow, fairly small box. Like the main speakers, its looks are strictly utilitarian.

The GTC77 represents a 4-ohm nominal load that Adam rates at 88 dB efficiency, while the GTC55 is an 8-ohm speaker rated at 86 dB. Power handling is given as a range of 150 to 230 watts and 120 to 180 watts, respectively. I drove them with a Parasound Halo A 51 five-channel amplifier that outputs 400 watts RMS per channel (into 4 ohms, all channels driven), with fantastic results. Other associated equipment included my Marantz AV7005 surround processor, Panasonic DMP-BD210 Blu-ray player, and Sony SCD-XA777ES SACD player. This system demands good, clean power to perform at its best.

Smooth, Spectacular Sonics
Nothing beats having three identical speakers arrayed across the front of your room—even if their performance is less than stellar. But when you have three identical, big, nearly full-range (rated 38 hertz to 50 kHz) speakers that sport the aforementioned X-ART tweeters, the resulting seamless and expansive front sonic picture is sensational. Sometimes nothing sounds worse than driver technologies that clash within the same box. Often if you pair the sonic particulars of a ribbon tweeter, for example, with a cone woofer, it produces obvious discontinuity. However Adam accomplished this, it’s managed to seamlessly blend the X-ART tweeter with the coned midrange and woofer.

COMPANY INFO
Adam Audio USA, Inc
ARTICLE CONTENTS
Share | |
COMMENTS
theo's picture

Michael,

This is really a rousing and stellar review.

So, assuming the nearest dealer is 300 miles away, how does one compare these speakers vs B&W, Revel, Wilson, etc (You have the Alexandrias in your setup, correct?) Did you give these any serious two-channel runs as well and were you equally impressed with the 2-channel performance? Curious to hear your thoughts.

Theo

Mister Leadfoot's picture

Took a look at their website and the Tensor series look incredible visually. Very interested in listening to these, but as theo said above, its a bit of drive for me as well to the nearest dealer...

Stephen Trask's picture

I've been mixing on self powered Adam P11a for about three years. The have the same tweeter and one of the 7" drivers and they have been fantastic. I've been waiting for a review from someone like Mr. Fremer of their home theater products to see if there products translated as well in that environment. I guess so and I'm not surprised. i love my Adams and they sound great in imperfect spaces. Thanks for the review.

jt1's picture

Any concerns related to running these 4 ohm speakers with a Wyred 4 Sound 1000 watt 4 ohm amp?

Scott Wilkinson's picture
Not if the amp is rated to power 4-ohm speakers safely. In our measurements, the minimum impedance was 5.39 ohms, so this combo should be no problem at all.
jt1's picture

Thanks!

jt1's picture

Has anyone heard the GTC 88s? I am interested in the difference and whether it may be worthwhile for my front left and right speakers. Maybe an 88 for center or stick with the GTC 77? Trying to decide.

K.Reid's picture

Everything that Michael Fremer indicated about these speakers is absolutely true. I had a listening session with a pair of the Adam Audio Pencil Mk3...and they are phenomenal. That X-Art tweeter is really something special. I experienced no listening fatigue. Adam Audio was also at CES this year with their Column Mk3 - another great listening experience. I definitely recommend them.

savage's picture

Dear Mr.Fremer,
I have purchased a set of these speaker and found that once they are set up according to manufacturers instruction, particularly having them focused behind the listening position, they are wonderful! Great sound stage, detail, and very musical. They are the best speakers I've ever owned for two channel or multichannel.

But I am not sure about the sub-woofer set up. How did you set yours up?

My receiver is a 5.1 channel with limited left and right audio outs (tape and zone 2). The sub has right and left in and right and left out. So I am really curious about how to set them up properly for multi channel systems. I am asking this question directly to Adam Audio, but wanted your input and experience as well.
Thank for your insightful articles.

savage's picture

Mr. Fortier from ADAM Audio answered my question on a Saturday! He says that it is ok to use one cable from one Sub out to the sub woofer, although I did need to turn up the sound level.

Fabulous speaker system. I am very happy. Thank you again Mr Fremer you didn't lead me wrong.
