Onkyo PR-RZ5100 Surround Processor Review Test Bench

Test Bench

Analog frequency response in Pure Audio mode:
–0.03 dB at 10 Hz
–0.00 dB at 20 Hz
–0.01 dB at 20 kHz
–0.03 dB at 50 kHz

Analog frequency response with signal processing:
–0.10 dB at 10 Hz
–0.02 dB at 20 Hz
–0.20 dB at 20 kHz
–63.32 dB at 50 kHz

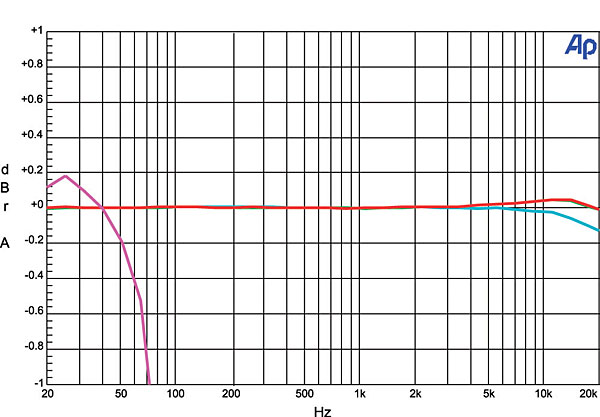

The above chart shows the frequency response of the left (aqua), center (green), LFE (purple), and left surround (red) channels at the preamp outputs of the Dolby Digital decoder. The left channel measures +0.00 decibels at 20 hertz and –0.13 dB at 20 kilohertz. The center channel measures –0.00 dB at 20 Hz and –0.01 dB at 20 kHz, and the left surround channel measures +0.00 dB at 20 Hz and –0.01 dB at 20 kHz. The LFE channel, normalized to the level at 40 Hz, is +0.12 dB at 20 Hz, reaches the upper –3dB point at 96 Hz, and reaches the upper –6dB point at 107 Hz.

There was no multichannel input to measure. The analog THD+N was less than 0.008% at 1 kHz with a 100-millivolt input and the volume control set to 78. Crosstalk with a 100-mV input was –98.47 dB left to right and –99.57 dB right to left. The signal-to-noise ratio with “A” weighting was –131.08 dBrA.—MJP
