Wisdom Audio Sage L100i In-Wall Speaker System Specs

Specs

Speaker: L100i
Type: In-wall
Mid/tweeter (size in inches, type): 48, planar magnetic
Woofer (size in inches, type): 6, cellulose composite (8)
Nominal Impedance (ohms): 4
Recommended Amp Power (watts): 1,000
Available Finishes: Eggshell (paintable)
Dimensions (W x H x D, inches): 8.09 x 52.52 x 3.8
Weight (pounds): 94
Price: $11,000/each

Speaker: C150i
Type: In-wall center
Mid/tweeter (size in inches, type): 48, planar magnetic
Woofer (size in inches, type): 6, cellulose composite (16)
Nominal Impedance (ohms): 4
Recommended Amp Power (watts): 1,000
Available Finishes: Eggshell (paintable)
Dimensions (W x H x D, inches): 8.09 x 52.52 x 3.8
Weight (pounds): 156
Price: $16,500/each

Speaker: L75
Type: Surround
Mid/tweeter (size in inches, type): 48, planar magnetic
Woofer (size in inches, type): 6, cellulose composite (4)
Nominal Impedance (ohms): 4
Recommended Amp Power (watts): 1,000
Available Finishes: Charcoal
Dimensions (W x H x D, inches): 7.11 x 79.67 x 6.28
Weight (pounds): 109
Price: $9,000/each

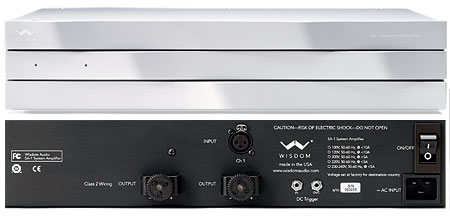

Wisdom Audio SA-1 Amplifier
Number of Channels: 2 (dual mono-single input)
Rated Power (watts per channel): 500 into 4 ohms, 2 channels driven
Specified Frequency Response: 20 Hz to 20 kHz
Dimensions (W x H x D, inches): 17 x 3.75 x 13.63
Weight (pounds): 40
Price: $4,500
Inputs: XLR (1)
Outputs: Cardas speaker connectors (2)
Additional: 12-volt trigger

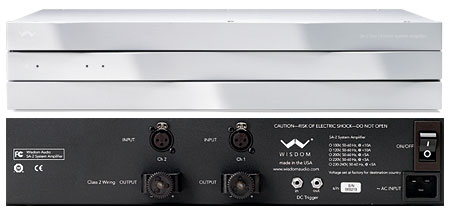

Wisdom Audio SA-2 Amplifier
Number of Channels: 2
Rated Power (watts per channel): 500 into 4 ohms, 2 channels driven
Specified Frequency Response: 20 Hz to 20 kHz
Dimensions (W x H x D, inches): 17 x 3.75 x 13.63
Weight (pounds): 40
Price: $4,500
Inputs: XLR (2)
Outputs: Cardas speaker connectors (2)
Additional: 12-volt trigger

Wisdom Audio SA-3 Amplifier
Number of Channels: 3
Rated Power (watts per channel): 500 into 4 ohms, 3 channels driven
Specified Frequency Response: 20 Hz to 20 kHz
Dimensions (W x H x D, inches): 17 x 3.75 x 13.63
Weight (pounds): 40
Price: $5,000
Inputs: XLR (3)
Outputs: Cardas speaker connectors (3)
Additional: 12-volt trigger

SCS Suitcase Subwoofer
Enclosure Type: Transmission Line
Woofer (size in inches, type): 5 x 7.5 (2)
Rated Power (watts): 400 RMS
Connections: Line-level unbalanced and balanced-line inputs (RCA & XLR)
Crossover Bypass: Adjustable
Available Finishes: Black
Dimensions (W x H x D, inches): 37 x 22.5 x 7
Weight (pounds): 72
Price: $4,000

SC-1 System Controller
Audio Decoding: None
Audyssey: Audyssey MultEQ XT Pro Software
Video Processing: None
Auto Setup/Room EQ: Audyssey
Dimensions (W x H x D, Inches): 17 x 3.75 x 13.63
Weight (pounds): 34
Price: $6,500
Inputs: Audio: 10-channel balanced-line XLR inputs
Additional: 12-volt trigger input (1)
Outputs: RS-232 (1), 12-volt trigger output (1)
Additional: Balanced-line XLR outputs (17), USB port (1)

Company Info
Wisdom Audio
(775) 887-8850
wisdomaudio.com
