Five channels driven continuously into 8-ohm loads:
0.1% distortion at 58.9 watts
1% distortion at 69.3 watts

Seven channels driven continuously into 8-ohm loads:
0.1% distortion at 55.3 watts
1% distortion at 64.9 watts

Analog frequency response in Analog Direct mode:
–0.06 dB at 10 Hz
–0.01 dB at 20 Hz
+0.04 dB at 20 kHz
–2.57 dB at 50 kHz

Analog frequency response with stereo signal processing:
–0.31 dB at 10 Hz
–0.10 dB at 20 Hz
–0.66 dB at 20 kHz
–58.70 dB at 50 kHz

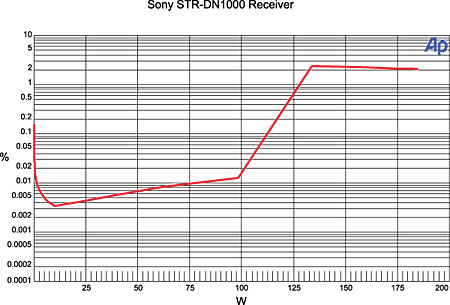

This graph shows that the STR-DN1000’s left channel, from CD input to speaker output with two channels driving 8-ohm loads, reaches 0.1 percent distortion at 112.4 watts and 1 percent distortion at 127.9 watts. Into 4 ohms, the amplifier reaches 0.1 percent distortion at 144.2 watts and 1 percent distortion at 167.0 watts.

THD+N from the CD input to the speaker output was less than 0.010 percent at 1 kilohertz when driving 2.83 volts into an 8-ohm load. Crosstalk at 1 kHz driving 2.83 volts into an 8-ohm load was –92.18 decibels left to right and –86.60 dB right to left. The signal-to-noise ratio with 2.83 volts driving an 8-ohm load from 10 Hz to 24 kHz with “A” weighting was –107.74 dBrA.

From the Dolby Digital input to the loudspeaker output, the left channel measures –0.07 dB at 20 hertz and –0.34 dB at 20 kHz. The center channel measures –0.07 dB at 20 Hz and –0.34 dB at 20 kHz, and the left surround channel measures –0.07 dB at 20 Hz and –0.36 dB at 20 kHz. From the Dolby Digital input to the line-level output, the LFE channel is +0.00 dB at 20 Hz when referenced to the level at 40 Hz and reaches the upper 3-dB down point at 105 Hz and the upper 6-dB down point at 111 Hz.—MJP
