Samsung HT-BD2T HTIB Features & Connections

Features: HD-BD2t Blu-ray Player/Receiver
BD-Live: No
Bonus View: Yes
Firmware Version: 1.2
Audio Decoding: Dolby: TrueHD, Digital Plus, Digital 5.1, EX, Pro Logic II, IIx; DTS: DTS-HD MA, DTS-HD HRA, DTS, ES, 96/24
HDMI Video Resolutions: 1080p/24, 1080p, 1080i, 720p, 480p, 480i
Compatible Playback Formats: BD-Video, DVD, DVD-R/-RW, CD, CD-R/-RW, MP3, JPEG
Number of Amp Channels: 7.1
Rated Power (watts per channel): 135 into 3 ohms (seven channels); sub, 150 into 8 ohms
Specified Frequency Response: 20 Hz to 20 kHz
Dimensions (W x H x D, inches): 17.32 x 3.43 x 15.59
Weight (pounds): 9.3

Connections: HD-BD2T Blu-ray Player/Receiver
Inputs: Audio: Coaxial digital (2), FM (1) additional: Ethernet Outputs: Video: HDMI 1.3 (1), component video (1), composite video (1) Audio: Stereo analog (1)

Features: Speakers

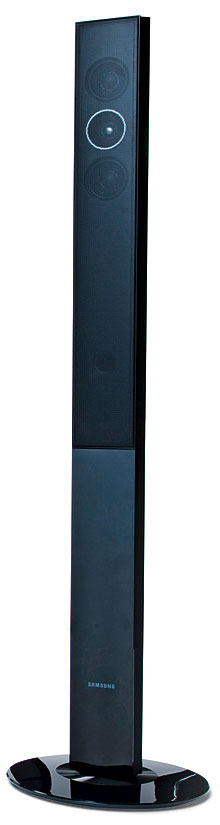

PS-FBD2
Type: Two-way tower
Tweeter (size in inches, type): 1, paper
Midrange (size in inches, type): 3, paper (2)
Nominal Impedance (ohms): 3
Available Finishes: Black
Dimensions (W x H x D, inches): 4.9 x 51.6 x 3.5
Weight (pounds): 13.89

PS-CBD2
Type: Two-way center
Tweeter (size in inches, type): 1, paper
Midrange (size in inches, type): 3, paper (2)
Nominal Impedance (ohms): 3
Available Finishes: Black
Dimensions (W x H x D, inches): 21.8 x 3.5 x 3.6
Weight (pounds): 4.85

PS-RBD2
Type: Two-way tower
Tweeter (size in inches, type): 1, paper
Midrange (size in inches, type): 3, paper (2)
Nominal Impedance (ohms): 3
Available Finishes: Black
Dimensions (W x H x D, inches): 4.9 x 51.6 x 3.5
Weight (pounds): 13.89

PS-SBD2
Type: Two-way monitor
Tweeter (size in inches, type): 1, paper
Midrange (size in inches, type): 3, paper (2)
Nominal Impedance (ohms): 3
Available Finishes: Black
Dimensions (W x H x D, inches): 3.9 x 10.6 x 3.8
Weight (pounds): 2.9

Connections: PS-wbd2 subwoofer
Enclosure Type: Vented Woofer (size in inches, type): 8, paper cone
Rated power (watts): 150–300
Connections: Line-level, RCA, mono
Crossover Bypass: Yes
Available Finishes: Black
Dimensions (W x H x D, inches): 12.2 x 14.96 x 17.44
Weight (pounds): 35.3

Manufacturer Info
Samsung
(800) SAMSUNG
www.samsung.com/us
