NuVision NVU52DCM LCD TV Measurements

Measurements

Settings
Keep in mind that unit-to-unit variations, viewing environment, source, and screen (in the case of front projectors) might render the settings I used less than optimum on some samples of this display. If you try these settings, I strongly recommend that you do so as a starting point, following up with one of the several display-setup DVDs on the market to make certain that the basic picture settings are correct for your situation.

The grayscale-calibration controls are available only in the service menu, which end users cannot access. To fully calibrate this set, consult a qualified technician.

Image Settings
Brightness 66
Contrast 67
Saturation 62
Sharpness 0
Hue N/A via HDMI
Color Temp Warm
Advanced
3DNR High
MPEG NR 0
ACC Off
ACM Off

Contrast & Resolution

Peak white level

  • Full screen 33.6fL
  • 100 IRE window 33.6fL
Black level 0.024fL
Peak contrast ratio 1400:1
Overscan
  • 480i/p 0%
  • 720p 0%
  • 1080i/p 0%
Horizontal bandwidth at 1080i
  • HDMI/DVI 37.1MHz
  • Component 18.75MHz

The component input was severely rolled off at highest frequency. Overscan performance was better than most sets at resolutions below 1080i/p. Black level was slightly lower than the Sony KDL-52XBR4's effective black level. Measurements were taken in the NuVision's Night backlight mode.

Grayscale & Color Temperature

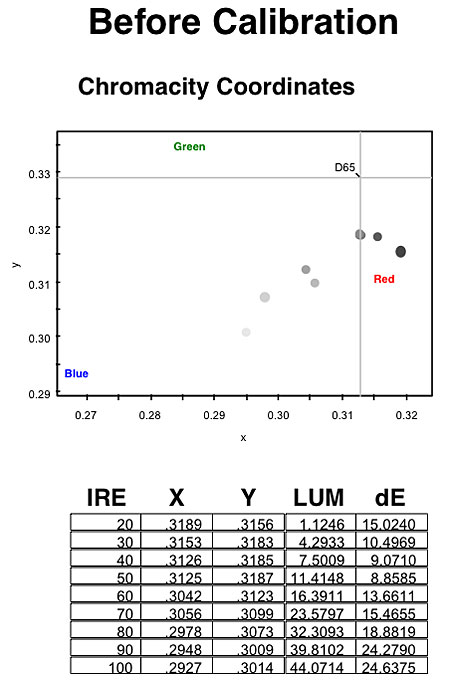

Before calibration, the grayscale tended toward red in the low end and blue in the high end.

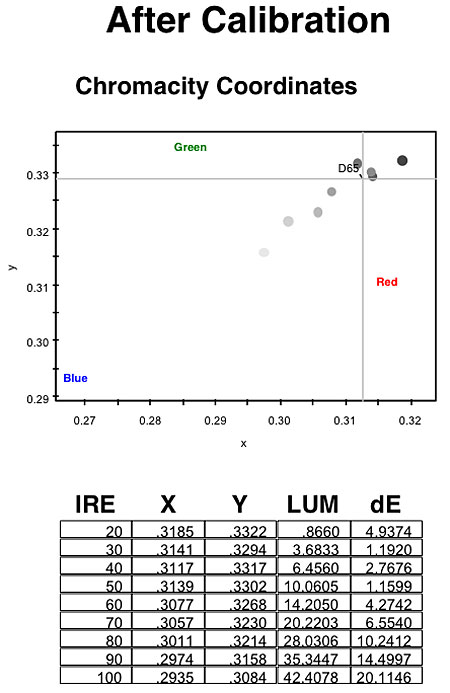

Calibration got the grayscale closer to D65, but it was still quite non-linear, with the high end tending toward blue. Having only a single set of RGB controls prevented a more-accurate calibration.

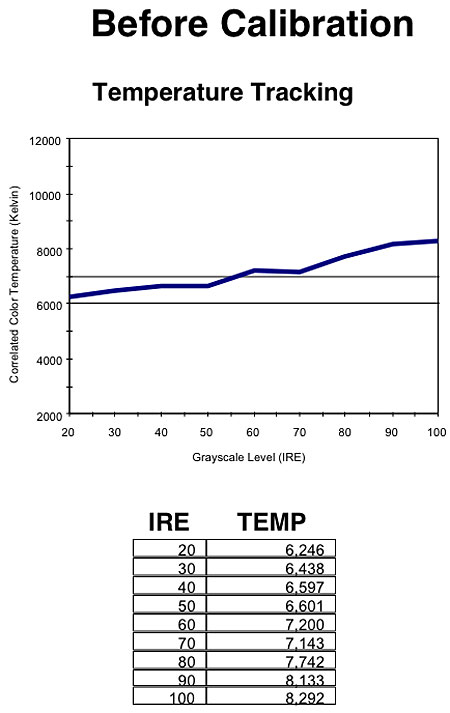

Color temperature steadily increased before calibration, exceeding 8000K at the high end.

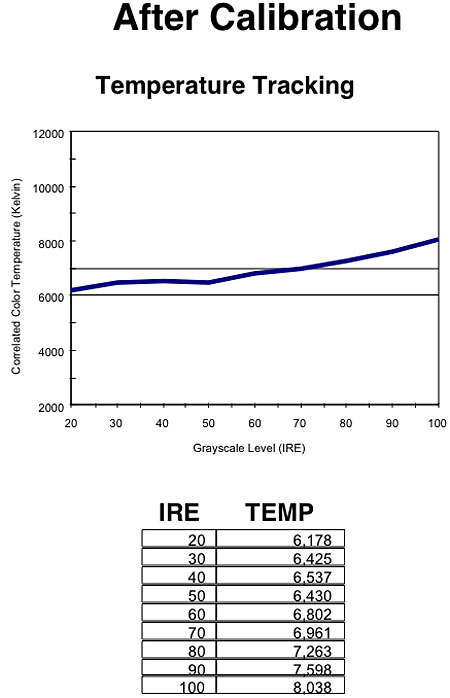

The color-temp profile remained unchanged after calibration, but it was reduced overall, reaching 8000K only at the top of the brightness scale.

Color Accuracy

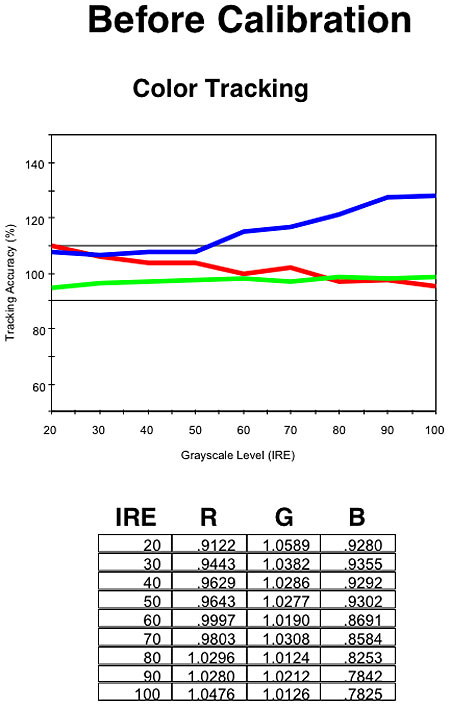

Blue predominated throughout most of the brightness range before calibration.

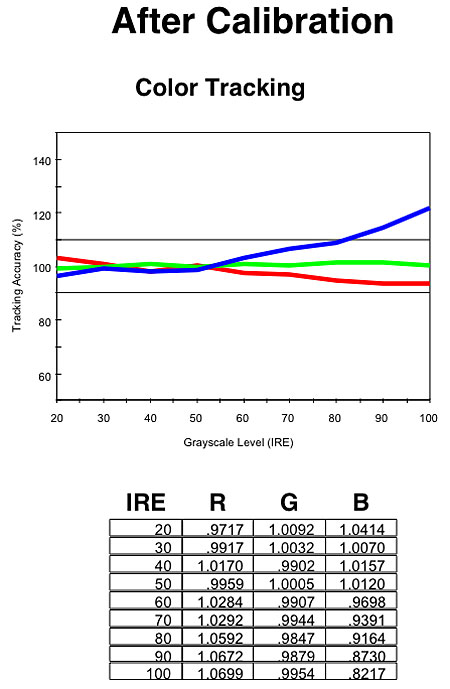

Color proportions were much better in the lower half of the brightness range after calibration, but they diverged above 60 IRE, with blue predominating.

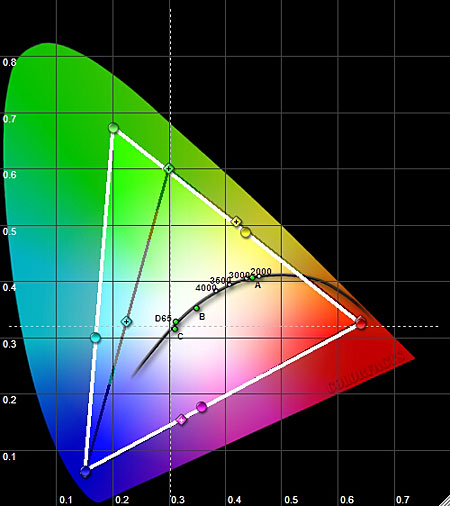

Clearly, green was way oversaturated, bringing cyan with it. Yellow was slightly orange, and magenta tended toward red. Blue and red were right on the money.
