Cambridge Audio Minx Air 200 Wireless Speaker System Test Bench

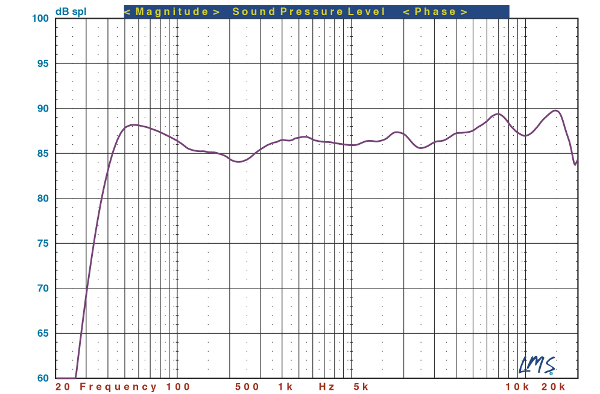

This graph shows the quasi-anechoic (employing close-miking of all woofers) frequency response of the Minx Air 200 Sound System (purple trace). The left channel was measured with grille at a distance of 1 meter.
The Minx Air 200 Sound System’s listening-window response (a five-point average of axial and +/–15-degree horizontal and vertical responses) measures + 2.73 /– 2.59 decibels from 200 hertz to 10 kilohertz. The –3dB point is at 40 Hz, and the –6dB point is at 37 Hz.—Mark J. Peterson
