AudioSource S3D60 Soundbar HT Labs Measures

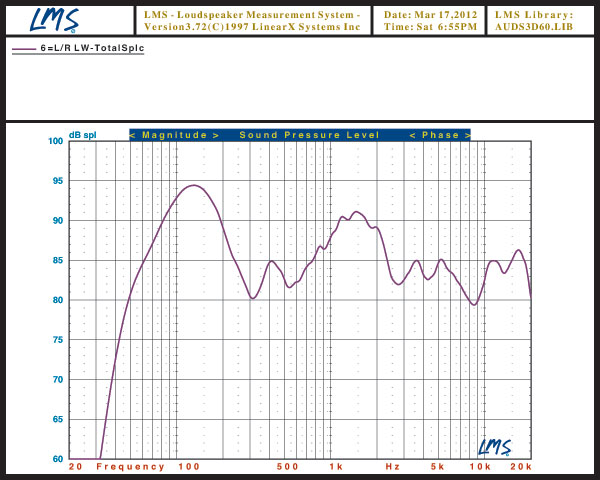

This graph shows the quasi-anechoic (employing close-miking of all woofers) frequency response of the AudioSource S3D60 Soundbar (purple trace). The left channel was measured with grill at a distance of 1 meter. The Mode control was set to Normal.
The listening-window response (a five-point average of axial and +/–15-degree horizontal and vertical responses) measured + 3.98/– 7.78 decibels from 200 hertz to 10 kilohertz. The –3dB point was at 59 Hz, and the –6dB point was at 51 Hz.MJP
